The XXX - 4/3 adapter with AF confirm and image stabilizer.

modify 25.01.08

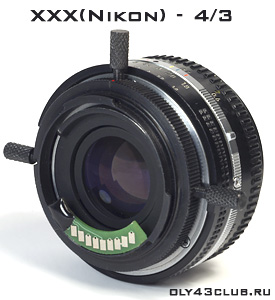

The XXX-4/3 adapter with the Dandelion (Olympus 4/3 AF confirm and image stabilizer) is for fitting lenses with various bayonet joint to the cameras with 4/3 system (Olympus E-system). This means that this adapter is the one which can adjust from 4/3 bayonet to various mount with the full or partially compensation of the flange focal distance and also with the AF confirm and the image stabilizer.






Non-standard solutions allow to use one XXX-4/3 adapter with different manual lens (M42, OM, Nikon, Pentax, Minolta, Canon FD, Practica-B ... etc.)


























The description and peculiarities of the use of the ХХХ-4/3 adapter.

The adapter is adjusted to the Olympus cameras of the E-series (E-1, E-300, E-330, E-500, E-400, E-410, E-420, E-450, E-510, E-520, E620, E-3, E-30 …). Adapter is made of steel and this allows making free use of big and heavy lenses. It has black chemical protective mat surface, knurl, the red mark for convenient use and the fix screw-handle for reliable mounting lens.
The adapter is the same shape as the Olympus bayonet. It twists in clearly and effortlessly, the holder orifice is ellipse-shaped which excludes backlash.

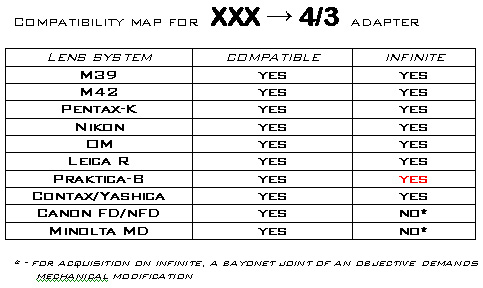

compatibility with XXX- 4/3:

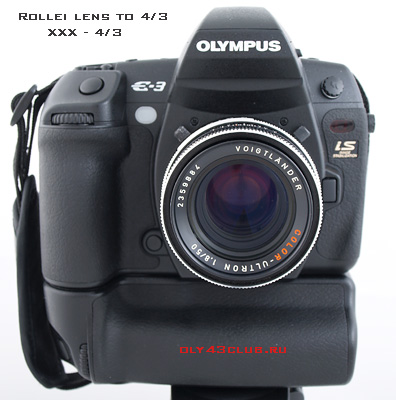

new Rollei QBM lens on OLYMPUS 4/3 cameras with infinity available!


Advantages of universal adapter ХХХ -4/3:

1. Reliability and durability (the adapter is made of a steel)
2. solid steel construction (for heavy lenses)
3. one adapter for all lens
4. universality, compatibility with all bayonet joints
5. black matte covering (for correct work exposure)
6. special platform for AF/IS chip (dandelion)
7. fixing screw (for reliable fixing of objectives )
8. comfortable design



The mode of the shoot with XXX-4/3 the adapter.

A clearly mechanical lens fastening with the help of the adapter does not allow us aperture control and auto-focusing control. Now you should do everything manually when you are setting parameters on your lens. In some cases this is even more convenient. The shooting should be done in the A or P mode of camera and the MF/S-AF/S-AF+MF-mode of auto-focusing. When using these modes the camera sets down the exposure value automatically, but the latter is dependent on those parameters of the aperture that you have already set down on your lens. When something gets into focus correctly, the green indicator flashes in the view finder and the beeping sound is heard. If your camera has the image stabilizer, it will also work, but for it effective work, the focal distance which is set into the chip should coincide with that of your lens.


read topic OLYMPUS E-system + various lens


HOW to BUY

[VGR/zymmi]

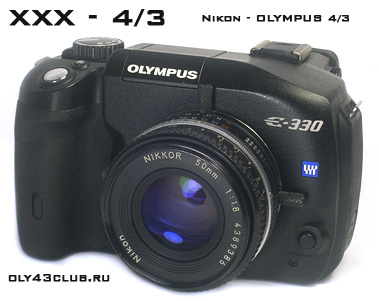

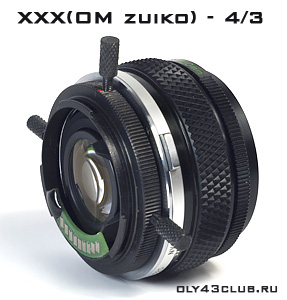

XXX-4/3 adapter compatible with all popular lens:

[VGR/zymmi]

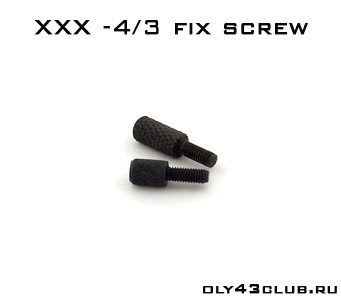

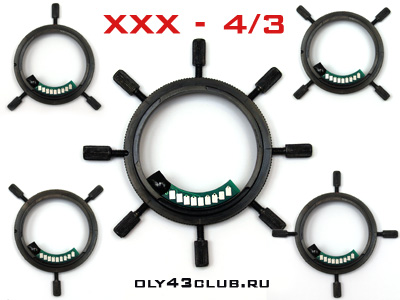

new reduce size for Fix screw:

[VGR/zymmi]

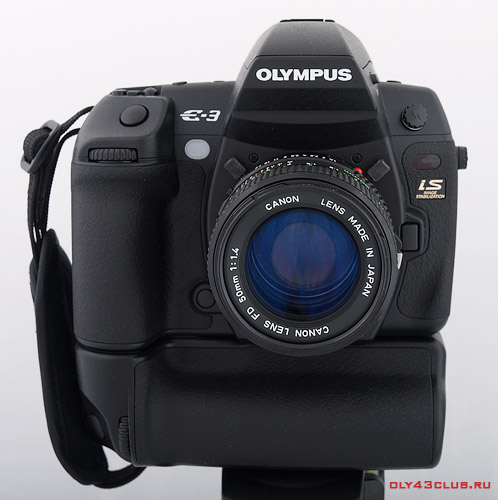

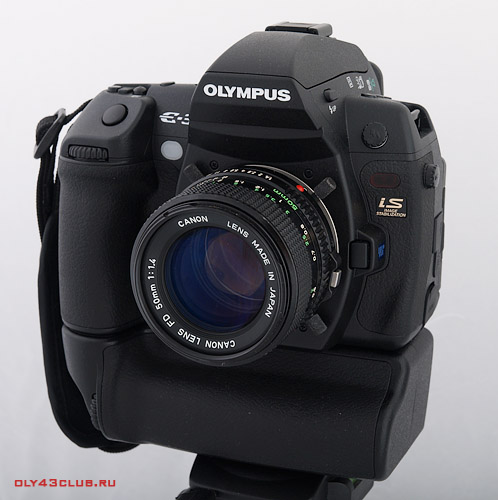

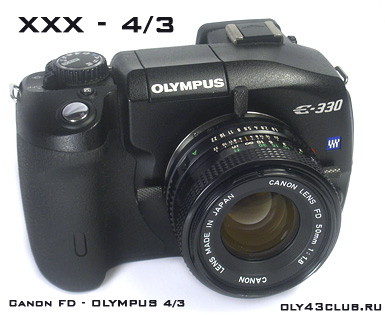

CANON FD:





Minolta MD:

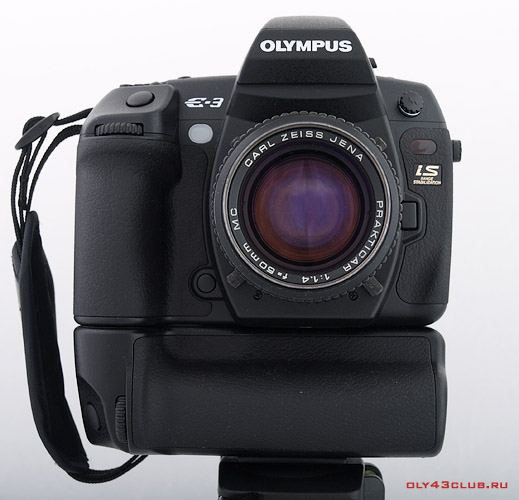

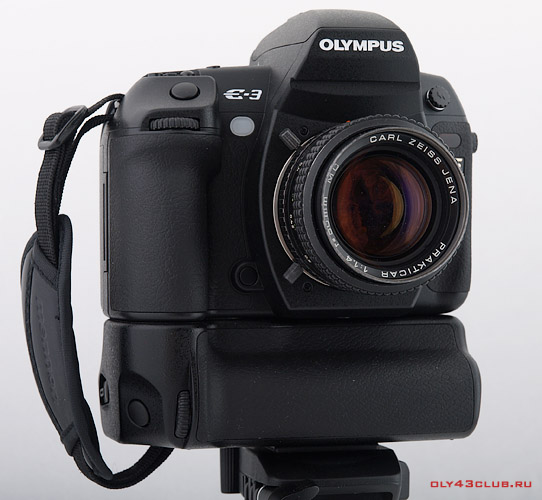

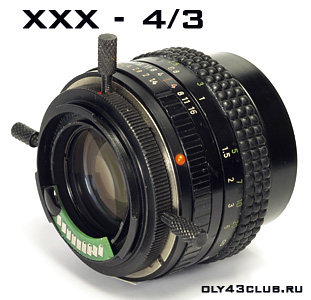

Praktica B:






photo:
http://oly43club.ru/forum/index.php?showforum=17

[VGR/zymmi]

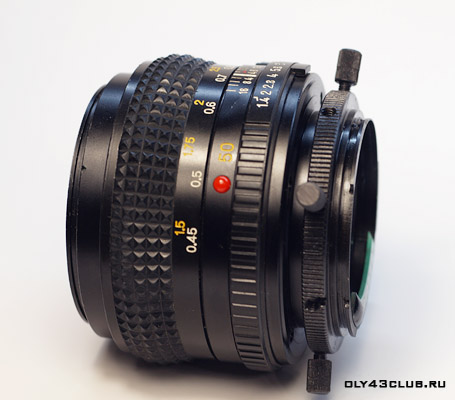

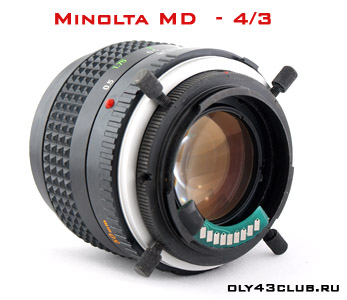

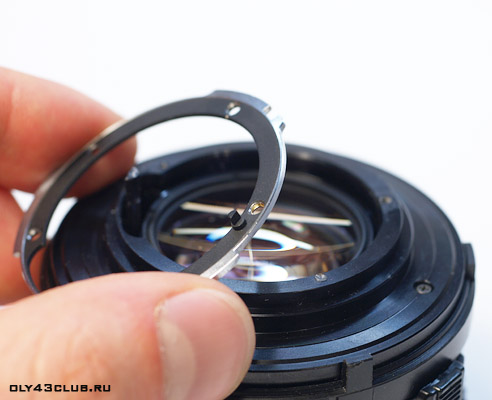

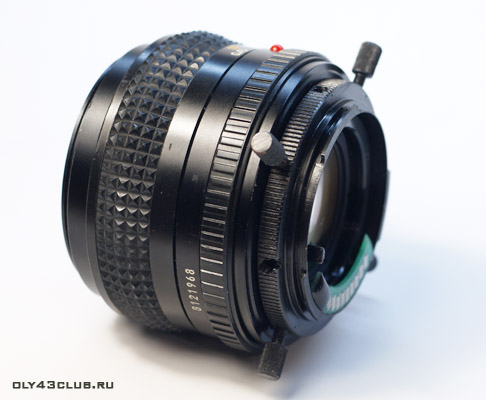

full compatibility Minolta MD lens with OLYMPUS 4/3 through XXX-4/3 adapter (infinite distance available)

[VGR/zymmi]

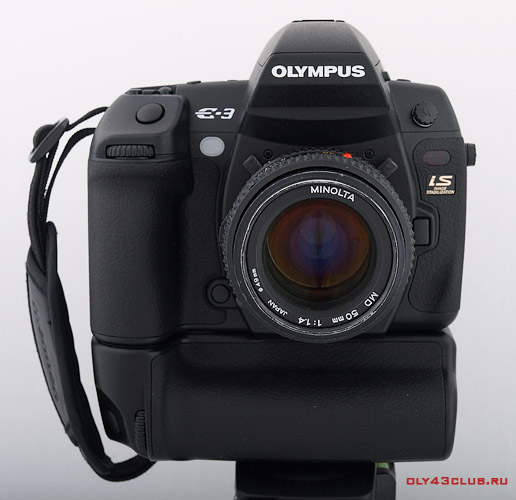

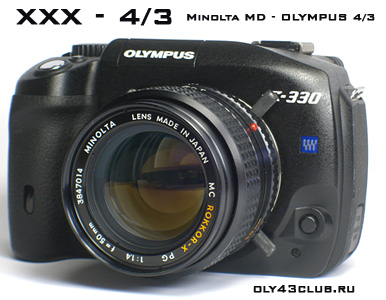

Minolta MC Rokkor-X PG 50/1.4 and OLYMPUS E-3:










PHOTO gallery

[VGR/zymmi]

Canon FD 85/1.2 L on E-3 through universal XXX-adapter

[VGR/zymmi]

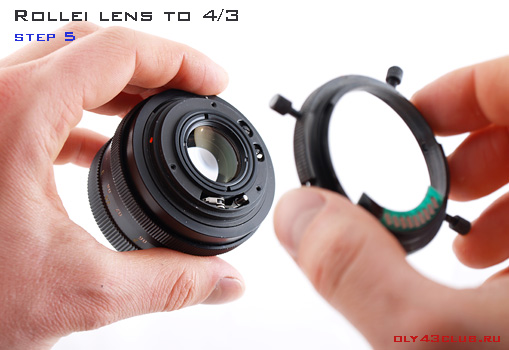

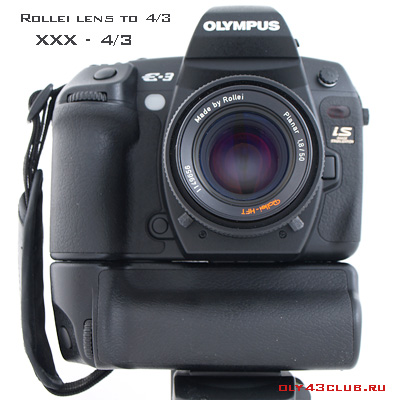

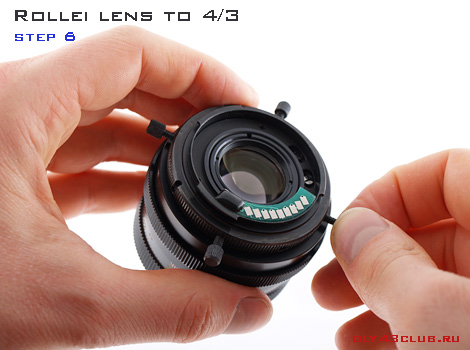

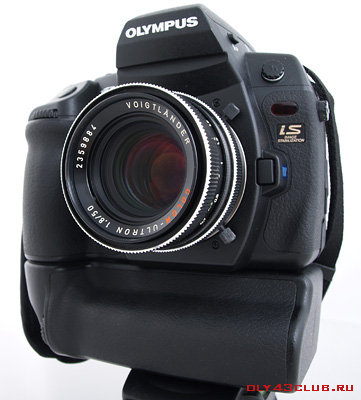

how to put Rollei QBM lens Through a universal adapter ХХХ-4/3 on OLYMPUS 4/3 cameras with infinity available!

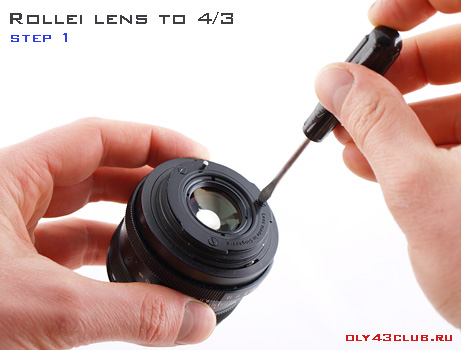

1. turn off screws of a bayonet joint

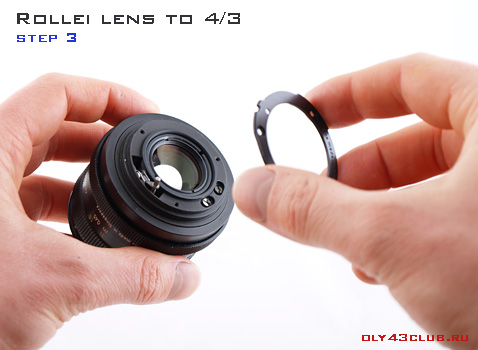

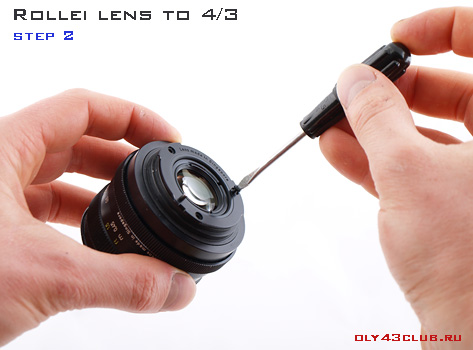

2. remove bayonet ring

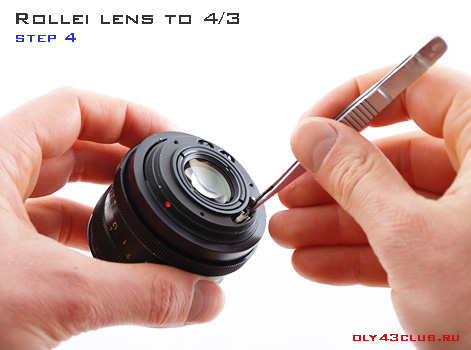

3. lock (put into) aperture pin


4. put on adapter ХХХ and fixed by means of screws on the lens

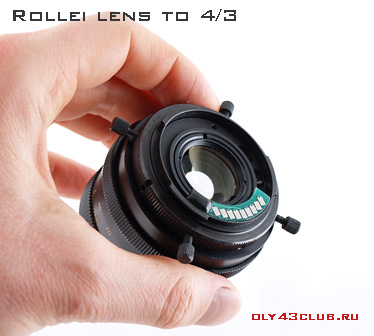

5. ready and infinity available!!!

[rimma]

privet zymmi...ya hochu imet fiksator xxx -3/4 kak ya mogu kupit ego ?

[VGR/zymmi]

privet zymmi...ya hochu imet fiksator xxx -3/4 kak ya mogu kupit ego ?

http://oly43club.ru/index.php?p=howtobuy

http://oly43club.ru/index.php?p=buy

http://oly43club.ru/index.php?p=price

[VGR/zymmi]

M42/M39 fixing ring for universal XXX-4/3 adapter, description on English

[masacre]

This Universal adapter Work on this lenses

300mm f5.5 Tele-Xenar

http://captjack.exaktaphile.com/300tele-xenar.jpg

http://www.mercadolibre.cl/jm/img?s=MLC&am...477.jpg&v=O
